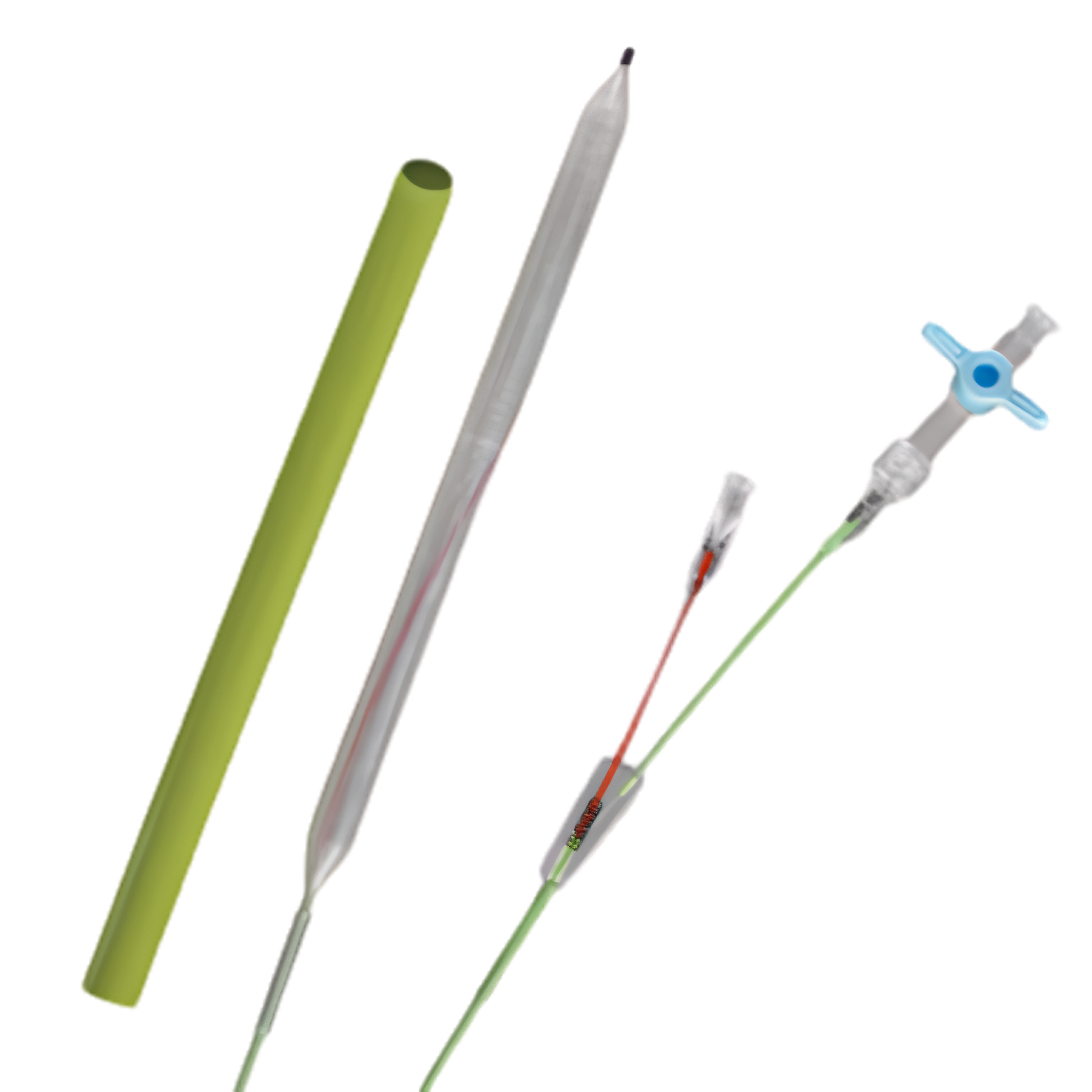

Endourology X-Force Nephrostomy Balloon Dilation Catheter, 10 mm X 15 cm, 30Fr (Contains: (1) 996101 Catheter And (1) 325130 Eagle Inflation Device, 20 cc / 30 Atm) (Two Piece Kit)

The X-Force Nephrostomy Balloon Dilation Catheter Kit is designed for percutaneous nephrostomy tract dilation and renal access procedures during Percutaneous Nephrolithotomy (PCNL).

This two-piece kit includes a 10 mm x 15 cm nephrostomy balloon dilation catheter (996101) and an Eagle Inflation Device (325130) capable of delivering up to 30 ATM pressure with a 20 cc capacity. The system enables controlled tract dilation to accommodate a 30 Fr access tract, supporting efficient renal access for stone management procedures.

The balloon catheter is engineered for high-pressure performance, helping clinicians achieve consistent dilation while minimizing the need for multiple sequential dilators.

Key Features

High-pressure nephrostomy balloon dilation system

10 mm balloon diameter

15 cm catheter length

Supports creation of a 30 Fr access tract

Includes Eagle Inflation Device

Inflation device capacity: 20 cc

Maximum inflation pressure: 30 ATM

Designed for controlled nephrostomy tract dilation

Sterile, single-use kit

Two-piece procedural system

Clinical Applications

Percutaneous Nephrolithotomy (PCNL)

Nephrostomy tract dilation

Renal access creation

Kidney stone removal procedures

Endourological interventions

Percutaneous renal surgery

Urological access procedures

Technical Specifications

Product Name: X-Force Nephrostomy Balloon Dilation Catheter Kit

Manufacturer: Bard Medical

Balloon Diameter: 10 mm

Catheter Length: 15 cm

Access Tract Size: 30 Fr

Catheter Model: 996101

Inflation Device Model: 325130 Eagle Inflation Device

Inflation Capacity: 20 cc

Maximum Inflation Pressure: 30 ATM

Kit Configuration: Two-Piece Kit

Sterility: Sterile

Usage: Single Use
